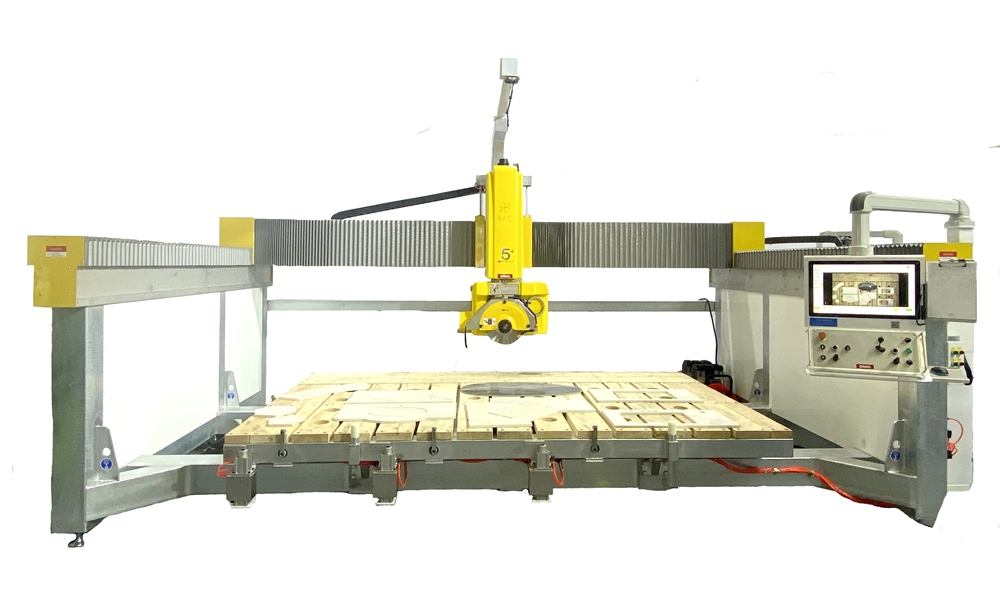

TITAN PLUS 5+ is the new generation multi-function processing machine which is associated to be designed and manufactured between OMC and research institute of famous college. With pattern operation and advanced control system and synchronous CNC control system, the machine can be easily operated easily without knowing complicated CNC knowledge. This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
Characteristic
1.Compact size without needing the ground base
2. Powerful 11kw motor with adjustable speed.
3.With less electricity and more efficiency, the cost is decreased much.
4.High quality accessories and electric parts are used to secure long service life and low cost.
Technical Parameters and Price
| Model | TITAN PLUS 5+ |
| Programming method 1 | CAD& Manual |
| Control method | CNC |
| Main motor power | 11kw 380V |
| R.P.M | 1000-6000r/min |
| Blade size | 400mm |
| X-axis working stroke | 3200mm |
| Y-axis working stroke | 2000mm |
| Z-axis working stroke | 290mm |
| A-axis working stroke | 360°free rotation |
| B-axis working stroke | Auto 0-90 degree chamfer |
| Cutting thickness | 100mm |
| Working table size | 3200*2000mm |
| Overall size | 5800*3120*3320mm |
| Weight | 4200KG |
|
